Java的23种设计模式，详细讲解（二）

JAVA学习网 2019-10-16 20:23:04

本人免费整理了Java高级资料，涵盖了Java、Redis、MongoDB、MySQL、Zookeeper、Spring Cloud、Dubbo高并发分布式等教程，一共30G，需要自己领取。
传送门：https://mp.weixin.qq.com/s/JzddfH-7yNudmkjT0IRL8Q

1. 责任链（Chain Of Responsibility）

Intent

使多个对象都有机会处理请求，从而避免请求的发送者和接收者之间的耦合关系。将这些对象连成一条链，并沿着这条链发送该请求，直到有一个对象处理它为止。

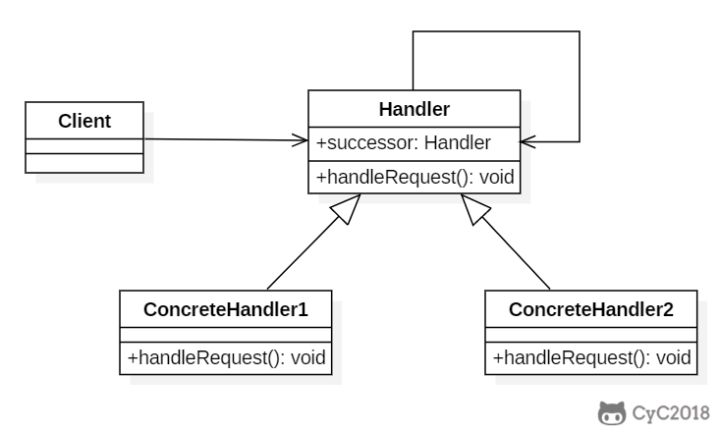

Class Diagram

  • Handler：定义处理请求的接口，并且实现后继链（successor）







Implementation

public abstract class Handler {

    protected Handler successor;


    public Handler(Handler successor) {
        this.successor = successor;
    }


    protected abstract void handleRequest(Request request);
}
public class ConcreteHandler1 extends Handler {

    public ConcreteHandler1(Handler successor) {
        super(successor);
    }


    @Override
    protected void handleRequest(Request request) {
        if (request.getType() == RequestType.TYPE1) {
            System.out.println(request.getName() + " is handle by ConcreteHandler1");
            return;
        }
        if (successor != null) {
            successor.handleRequest(request);
        }
    }
}
public class ConcreteHandler2 extends Handler {

    public ConcreteHandler2(Handler successor) {
        super(successor);
    }


    @Override
    protected void handleRequest(Request request) {
        if (request.getType() == RequestType.TYPE2) {
            System.out.println(request.getName() + " is handle by ConcreteHandler2");
            return;
        }
        if (successor != null) {
            successor.handleRequest(request);
        }
    }
}
public class Request {

    private RequestType type;
    private String name;


    public Request(RequestType type, String name) {
        this.type = type;
        this.name = name;
    }


    public RequestType getType() {
        return type;
    }


    public String getName() {
        return name;
    }
}
public enum RequestType {
    TYPE1, TYPE2
}
public class Client {

    public static void main(String[] args) {

        Handler handler1 = new ConcreteHandler1(null);
        Handler handler2 = new ConcreteHandler2(handler1);

        Request request1 = new Request(RequestType.TYPE1, "request1");
        handler2.handleRequest(request1);

        Request request2 = new Request(RequestType.TYPE2, "request2");
        handler2.handleRequest(request2);
    }
}
request1 is handle by ConcreteHandler1
request2 is handle by ConcreteHandler2



JDK

2. 命令（Command）

Intent

将命令封装成对象中，具有以下作用：

  • 使用命令来参数化其它对象
  • 将命令放入队列中进行排队
  • 将命令的操作记录到日志中
  • 支持可撤销的操作

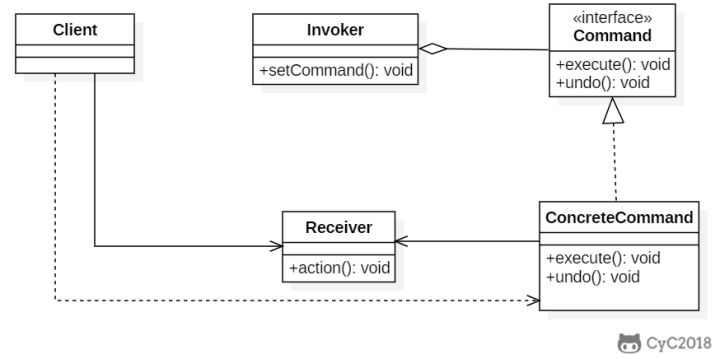

Class Diagram

  • Command：命令
  • Receiver：命令接收者，也就是命令真正的执行者
  • Invoker：通过它来调用命令
  • Client：可以设置命令与命令的接收者







Implementation

设计一个遥控器，可以控制电灯开关。







public interface Command {
    void execute();
}
public class LightOnCommand implements Command {
    Light light;

    public LightOnCommand(Light light) {
        this.light = light;
    }

    @Override
    public void execute() {
        light.on();
    }
}
public class LightOffCommand implements Command {
    Light light;

    public LightOffCommand(Light light) {
        this.light = light;
    }

    @Override
    public void execute() {
        light.off();
    }
}
public class Light {

    public void on() {
        System.out.println("Light is on!");
    }

    public void off() {
        System.out.println("Light is off!");
    }
}
/**
 * 遥控器
 */
public class Invoker {
    private Command[] onCommands;
    private Command[] offCommands;
    private final int slotNum = 7;

    public Invoker() {
        this.onCommands = new Command[slotNum];
        this.offCommands = new Command[slotNum];
    }

    public void setOnCommand(Command command, int slot) {
        onCommands[slot] = command;
    }

    public void setOffCommand(Command command, int slot) {
        offCommands[slot] = command;
    }

    public void onButtonWasPushed(int slot) {
        onCommands[slot].execute();
    }

    public void offButtonWasPushed(int slot) {
        offCommands[slot].execute();
    }
}
public class Client {
    public static void main(String[] args) {
        Invoker invoker = new Invoker();
        Light light = new Light();
        Command lightOnCommand = new LightOnCommand(light);
        Command lightOffCommand = new LightOffCommand(light);
        invoker.setOnCommand(lightOnCommand, 0);
        invoker.setOffCommand(lightOffCommand, 0);
        invoker.onButtonWasPushed(0);
        invoker.offButtonWasPushed(0);
    }
}



JDK

3. 解释器（Interpreter）

Intent

为语言创建解释器，通常由语言的语法和语法分析来定义。

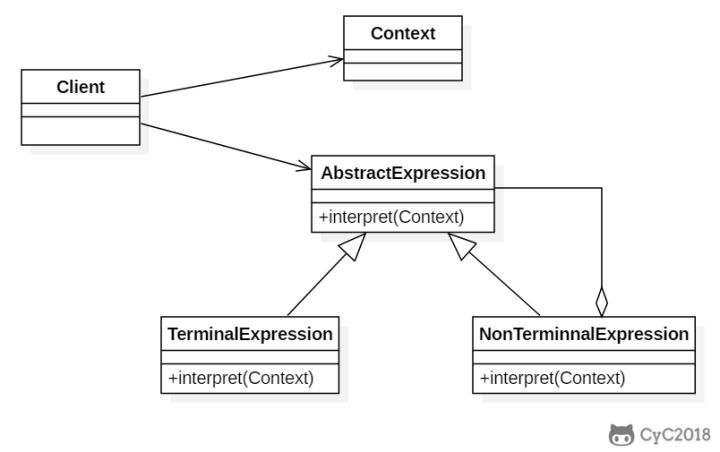

Class Diagram

  • TerminalExpression：终结符表达式，每个终结符都需要一个 TerminalExpression。
  • Context：上下文，包含解释器之外的一些全局信息。







Implementation

以下是一个规则检验器实现，具有 and 和 or 规则，通过规则可以构建一颗解析树，用来检验一个文本是否满足解析树定义的规则。

例如一颗解析树为 D And (A Or (B C))，文本 "D A" 满足该解析树定义的规则。

这里的 Context 指的是 String。

public abstract class Expression {
    public abstract boolean interpret(String str);
}
public class TerminalExpression extends Expression {

    private String literal = null;

    public TerminalExpression(String str) {
        literal = str;
    }

    public boolean interpret(String str) {
        StringTokenizer st = new StringTokenizer(str);
        while (st.hasMoreTokens()) {
            String test = st.nextToken();
            if (test.equals(literal)) {
                return true;
            }
        }
        return false;
    }
}
public class AndExpression extends Expression {

    private Expression expression1 = null;
    private Expression expression2 = null;

    public AndExpression(Expression expression1, Expression expression2) {
        this.expression1 = expression1;
        this.expression2 = expression2;
    }

    public boolean interpret(String str) {
        return expression1.interpret(str) && expression2.interpret(str);
    }
}
public class OrExpression extends Expression {
    private Expression expression1 = null;
    private Expression expression2 = null;

    public OrExpression(Expression expression1, Expression expression2) {
        this.expression1 = expression1;
        this.expression2 = expression2;
    }

    public boolean interpret(String str) {
        return expression1.interpret(str) || expression2.interpret(str);
    }
}
public class Client {

    /**
     * 构建解析树
     */
    public static Expression buildInterpreterTree() {
        // Literal
        Expression terminal1 = new TerminalExpression("A");
        Expression terminal2 = new TerminalExpression("B");
        Expression terminal3 = new TerminalExpression("C");
        Expression terminal4 = new TerminalExpression("D");
        // B C
        Expression alternation1 = new OrExpression(terminal2, terminal3);
        // A Or (B C)
        Expression alternation2 = new OrExpression(terminal1, alternation1);
        // D And (A Or (B C))
        return new AndExpression(terminal4, alternation2);
    }

    public static void main(String[] args) {
        Expression define = buildInterpreterTree();
        String context1 = "D A";
        String context2 = "A B";
        System.out.println(define.interpret(context1));
        System.out.println(define.interpret(context2));
    }
}
true
false



JDK

4. 迭代器（Iterator）

Intent

提供一种顺序访问聚合对象元素的方法，并且不暴露聚合对象的内部表示。

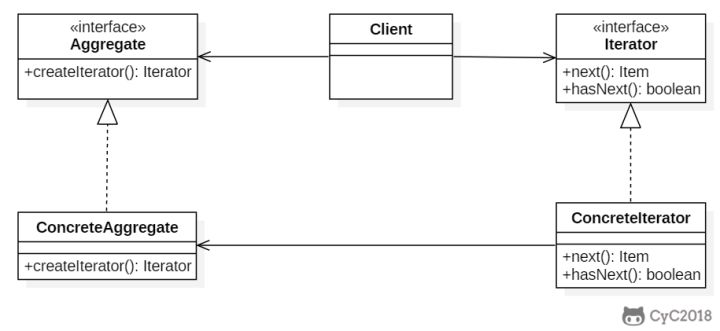

Class Diagram

  • Aggregate 是聚合类，其中 createIterator() 方法可以产生一个 Iterator；
  • Iterator 主要定义了 hasNext() 和 next() 方法。
  • Client 组合了 Aggregate，为了迭代遍历 Aggregate，也需要组合 Iterator。







Implementation

public interface Aggregate {
    Iterator createIterator();
}
public class ConcreteAggregate implements Aggregate {

    private Integer[] items;

    public ConcreteAggregate() {
        items = new Integer[10];
        for (int i = 0; i < items.length; i++) {
            items[i] = i;
        }
    }

    @Override
    public Iterator createIterator() {
        return new ConcreteIterator<Integer>(items);
    }
}
public interface Iterator<Item> {

    Item next();

    boolean hasNext();
}
public class ConcreteIterator<Item> implements Iterator {

    private Item[] items;
    private int position = 0;

    public ConcreteIterator(Item[] items) {
        this.items = items;
    }

    @Override
    public Object next() {
        return items[position++];
    }

    @Override
    public boolean hasNext() {
        return position < items.length;
    }
}
public class Client {

    public static void main(String[] args) {
        Aggregate aggregate = new ConcreteAggregate();
        Iterator<Integer> iterator = aggregate.createIterator();
        while (iterator.hasNext()) {
            System.out.println(iterator.next());
        }
    }
}



JDK

5. 中介者（Mediator）

Intent

集中相关对象之间复杂的沟通和控制方式。

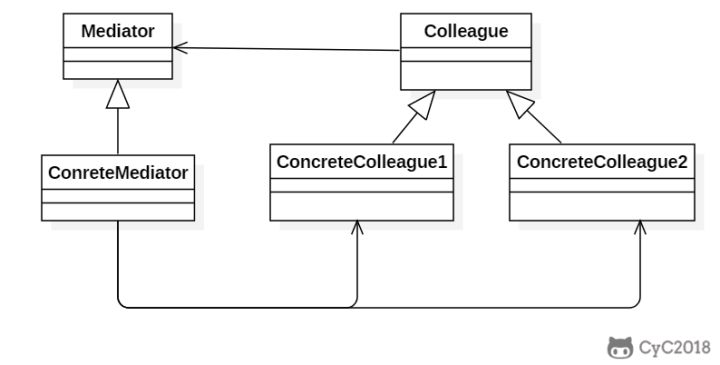

Class Diagram

  • Mediator：中介者，定义一个接口用于与各同事（Colleague）对象通信。
  • Colleague：同事，相关对象







Implementation

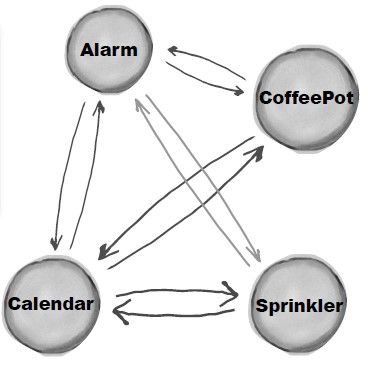

Alarm（闹钟）、CoffeePot（咖啡壶）、Calendar（日历）、Sprinkler（喷头）是一组相关的对象，在某个对象的事件产生时需要去操作其它对象，形成了下面这种依赖结构：

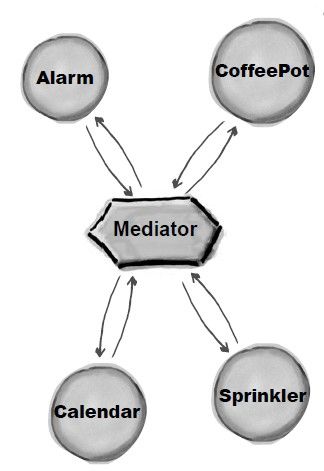

使用中介者模式可以将复杂的依赖结构变成星形结构：







public abstract class Colleague {
    public abstract void onEvent(Mediator mediator);
}
public class Alarm extends Colleague {

    @Override
    public void onEvent(Mediator mediator) {
        mediator.doEvent("alarm");
    }

    public void doAlarm() {
        System.out.println("doAlarm()");
    }
}
public class CoffeePot extends Colleague {
    @Override
    public void onEvent(Mediator mediator) {
        mediator.doEvent("coffeePot");
    }

    public void doCoffeePot() {
        System.out.println("doCoffeePot()");
    }
}
public class Calender extends Colleague {
    @Override
    public void onEvent(Mediator mediator) {
        mediator.doEvent("calender");
    }

    public void doCalender() {
        System.out.println("doCalender()");
    }
}
public class Sprinkler extends Colleague {
    @Override
    public void onEvent(Mediator mediator) {
        mediator.doEvent("sprinkler");
    }

    public void doSprinkler() {
        System.out.println("doSprinkler()");
    }
}
public abstract class Mediator {
    public abstract void doEvent(String eventType);
}
public class ConcreteMediator extends Mediator {
    private Alarm alarm;
    private CoffeePot coffeePot;
    private Calender calender;
    private Sprinkler sprinkler;

    public ConcreteMediator(Alarm alarm, CoffeePot coffeePot, Calender calender, Sprinkler sprinkler) {
        this.alarm = alarm;
        this.coffeePot = coffeePot;
        this.calender = calender;
        this.sprinkler = sprinkler;
    }

    @Override
    public void doEvent(String eventType) {
        switch (eventType) {
            case "alarm":
                doAlarmEvent();
                break;
            case "coffeePot":
                doCoffeePotEvent();
                break;
            case "calender":
                doCalenderEvent();
                break;
            default:
                doSprinklerEvent();
        }
    }

    public void doAlarmEvent() {
        alarm.doAlarm();
        coffeePot.doCoffeePot();
        calender.doCalender();
        sprinkler.doSprinkler();
    }

    public void doCoffeePotEvent() {
        // ...
    }

    public void doCalenderEvent() {
        // ...
    }

    public void doSprinklerEvent() {
        // ...
    }
}
public class Client {
    public static void main(String[] args) {
        Alarm alarm = new Alarm();
        CoffeePot coffeePot = new CoffeePot();
        Calender calender = new Calender();
        Sprinkler sprinkler = new Sprinkler();
        Mediator mediator = new ConcreteMediator(alarm, coffeePot, calender, sprinkler);
        // 闹钟事件到达，调用中介者就可以操作相关对象
        alarm.onEvent(mediator);
    }
}
doAlarm()
doCoffeePot()
doCalender()
